FINEP / RAMS PROJECT

PROJETO FINEP / RAMS FASE – ENGENHARIA REVERSA "RELATÓRIO DO PROJETO BÁSICO"

FINEP / RAMS PROJECT REVERSE ENGINNEERING PHASE "BASIC DESIGN REPORT"

Contents

1. INTRODUCTION *

1.1. Scope *

1.2. References *

1.3. Definitions *

2. DATA FLOW DIAGRAMS * 2.1. Context Diagram *

2.2. RAMS *

2.3. Atmospheric Model *

2.4. Prognostic Model *

2.5. Meteorological Functions *

2.6. Dynamics Functions *

3. DATA STRUCTURES *

A. ANNEX *

A.1. Subroutines versus Variables modified (declared in Commons) *

A.2. Subroutines versus Variables modified (not declared in Common) *

A.3. Subroutines versus Variables passed as Arguments *

INTRODUCTION

This documment has the objective to represent a functional model of Regional Atmospheric
Modeling System (RAMS), based on Structured Analysis, see reference /1/.

It was elaborated by a CASE tool, based on the documments related in /2/, /3/, /4/, /5/ and /6/.

Scope

This document is organized into :

Chapter 2 - contains a set of data flow diagram which represents the RAMS and its levels of decomposition

Chapter 3 - contains reports which describe the data structure of each data flow and data store, represented on DFD.

Annex - contains reports related to subroutines and which variable are modified .

1.2. References

/1/ Modern Structure Analysis - Edward Yourdon / 1990

/2/ ASTER - RAMS version 3b User's Guide

/3/ ASTER - RAMS (source code version 4.2.5)

/4/ ELEBRA Static Analysis Reports cod. 1208.001.001.1, doc. 106, rev. 00

/5/ ELEBRA Detailed Design Reports cod. 1208.001.001.1, doc. 163, rev. 01

/6/ ELEBRA Data Dictionary of Shared Variables cod. 1208.001.001.1, doc. 170, rev. 00

Definitions

CASE Computer Aided Software Enginneering

CPTEC Centro de Previsão do Tempo e Estudos Climáticos

DFD Data Flow Diagram

RAMS Regional Atmospheric Modeling System

2. DATA FLOW DIAGRAMS

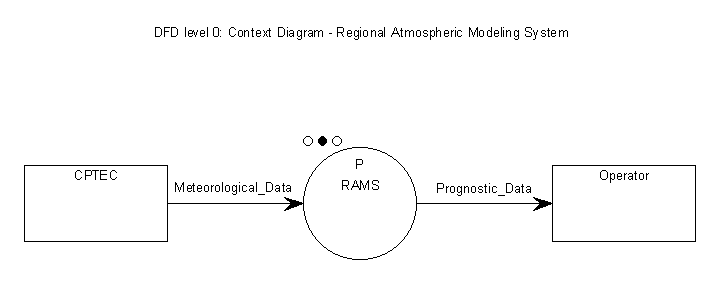

2.1. Context Diagram

Description Report

Name Description

CPTEC

It represents an external interface, which gives the current state of the atmosphere, i.e., the values of certain specified meteorological

quantities to the RAMS.

Operator

t represents an external interface, Man Machine Interface, which contains the post - processing model visualization,

and the visualization software utilities.

RAMS

The Regional Atmospheric Modelling System (RAMS) is a highly versatile numerical code developed by scientists at Colorado State University and the ASTER division of Mission Research Corporation

for simulating and forescasting meteorological fenomena, and for

depicting the results. Its major component are:

- Atmospherical model which performs the actual simulations;

- Data analysis package which prepares initial data for the

atmospheric model from observed meteorological data;

- Post - processing model visualization which interfaces atmospheric

will be consider as external).

see reference /2/.

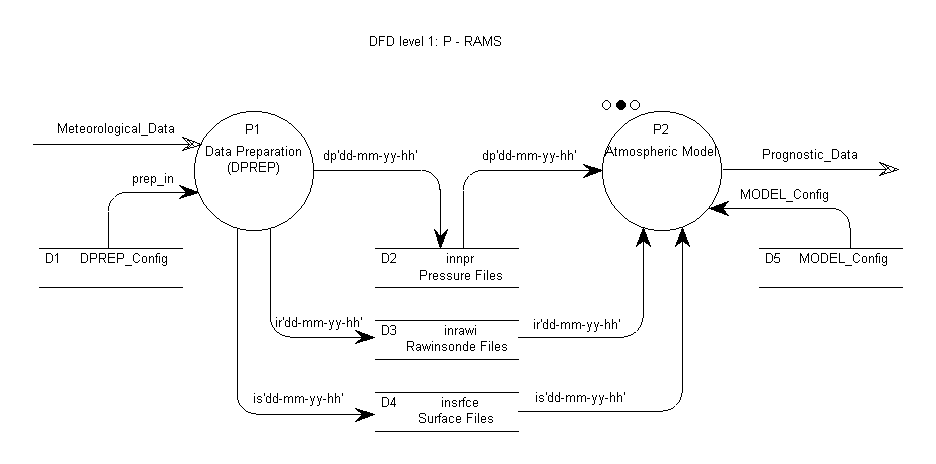

2.2. RAMS

Description Report

Name Description

Atmospheric Model

The atmospheric model is constructed around the full set of primitive

dynamical equations which govern atmospheric motions, and

supplements these equations with optional parameterizations for

turbulent diffusion, solar and terrestrial radiation, moist processes

including the formation and interaction of clouds and precipitating

liquid and ice hydrometeors, sensible and latent heat exchange between

the atmosphere, multiple soil layers, a vegetation canopy, and surface

water, the kinematic efffects of terrain, and cumulus convection.

see reference /2/.

Data Preparation (DPREP)

Data Preparation (DPREP) reads observational data (upper air

soundings, land surface, ship, buoy and pressure level data) of arbitrary

format and write the data out files in a standard RAMS format.

see reference /5/ - Volume I

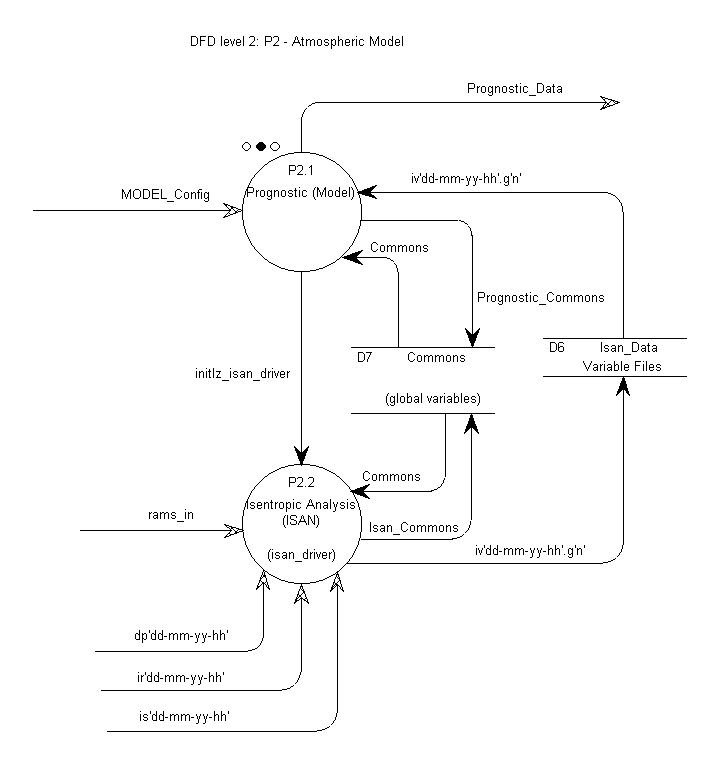

2.3. Atmospheric Model

Description Report

Name Description

Isentropic Analysis (ISAN)

The ISAN (ISentropic ANalysis) contains all the files concerned with the analysis part of the code. The main purpose of it, roughly speaking, is to prepare the initial data for the RAMS model to be run. It represents the functions implemented by the subroutine isan_driver and all of the modules called by it. see reference /5/ - Volume II Prognostic (Model) The prognostic component of RAMS, advances gridded fields of atmospheric velocity, pressure, potencial temperature, and optionally, moisture and other variables from an initial stage through a series of discrete time steps to a future state based on a closed set of differential equations which describe the physical laws governing the atmosphere. A prognostic soil and vegetation model may optionally interact with the modeled atmosphere as a lower boundary condition. The model domain may be either two- or three-dimensional and a small two-dimensional domain may be set up to function as a one-dimensional (vertical only) model. see reference /2/.

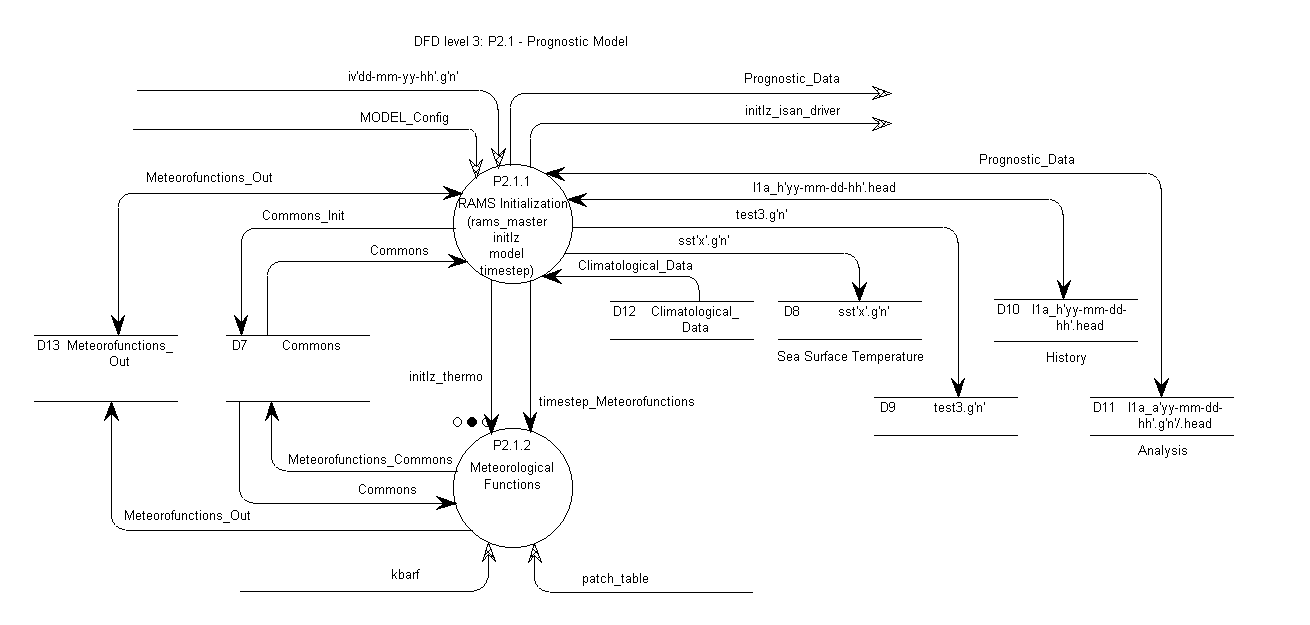

2.4. Prognostic Model

Description Report

Name Description

Meteorological Functions

It represents the meteorological functions indeed.
see reference /5/ - Volume III
RAMS Initialization It representes the main computational functions like initialization and management, implemented by the modules:
- rams_master
- initlz
- model
- timestep
see reference /5/ - Volume III

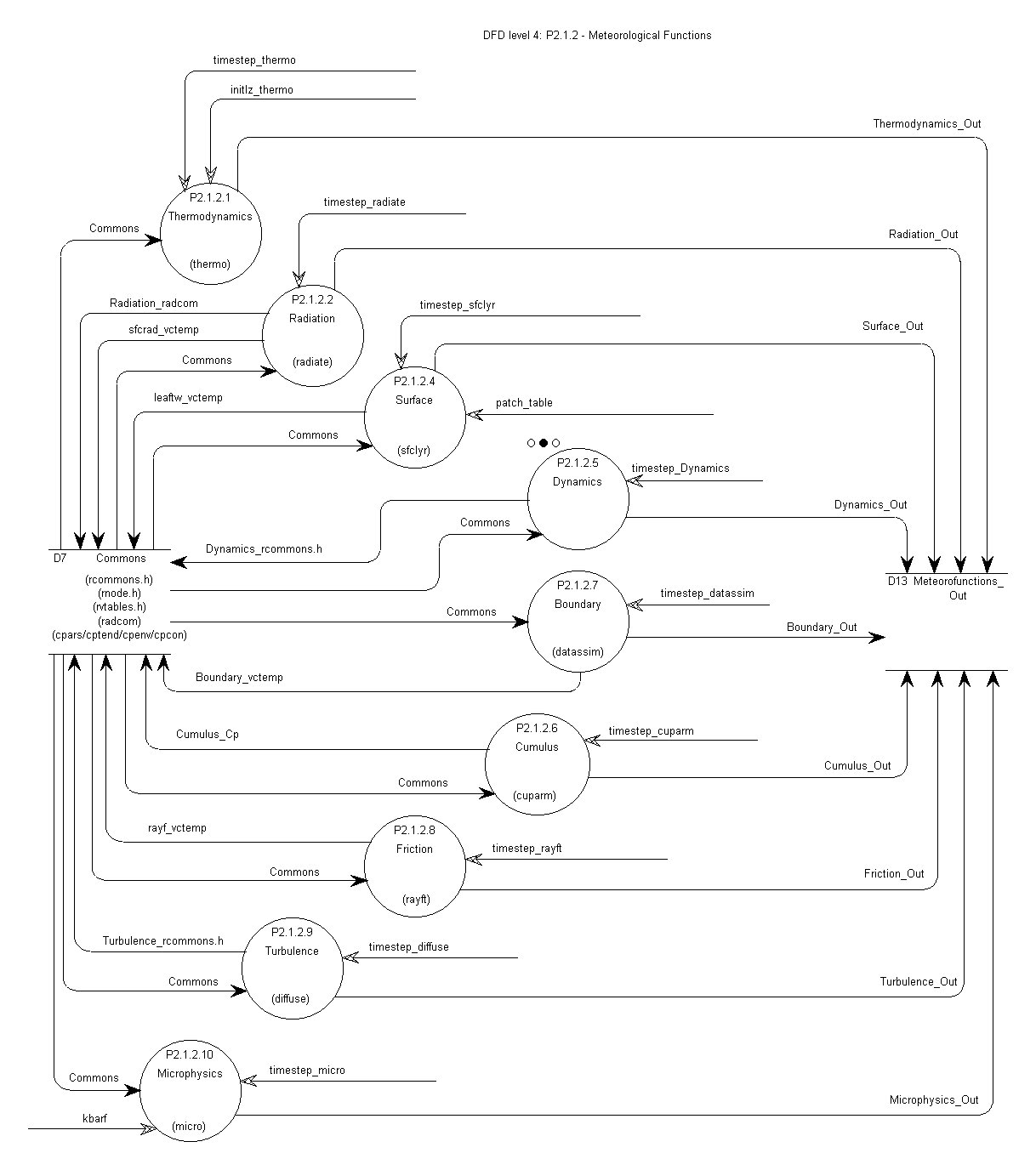

2.5. Meteorological Functions

Description Report

Name Description

Boundary

It represents the boundary function, implemented by the module

datassim and all other modules called by it.

see reference /5/ - Volume III

Cumulus

It represents the cumulus function, implemented by the module

cuparm and all other modules called by it.

see reference /5/ - Volume III

Dynamics

It represents the following meteorological function:

- coriolis

- advection

- time advance

- buoyancy

- acoustic

Friction

It represents the friction function, implemented by the module

rayft and all other modules called by it.

see reference /5/ - Volume III

Microphysics

It represents the microphysics function, implemented by the module

micro and all other modules called by it.

see reference /5/ - Volume III

Radiation

It represents the radiation function, implemented by the module

radiate and all other modules called by it.

see reference /5/ - Volume III

Surface It represents the surface fluxes function, implemented by the module sfclyr and all other mmodules called by it.
see reference /5/ - Volume III

Thermodynamics

It represents the thermodynamic function, implemented by the

module

thermo and all other modules called by it.

see reference /5/ - Volume III

Turbulence

It represents the surface turbulence function, implemented by the

module diffuse and all other modules called by it.

see reference /5/ - Volume III

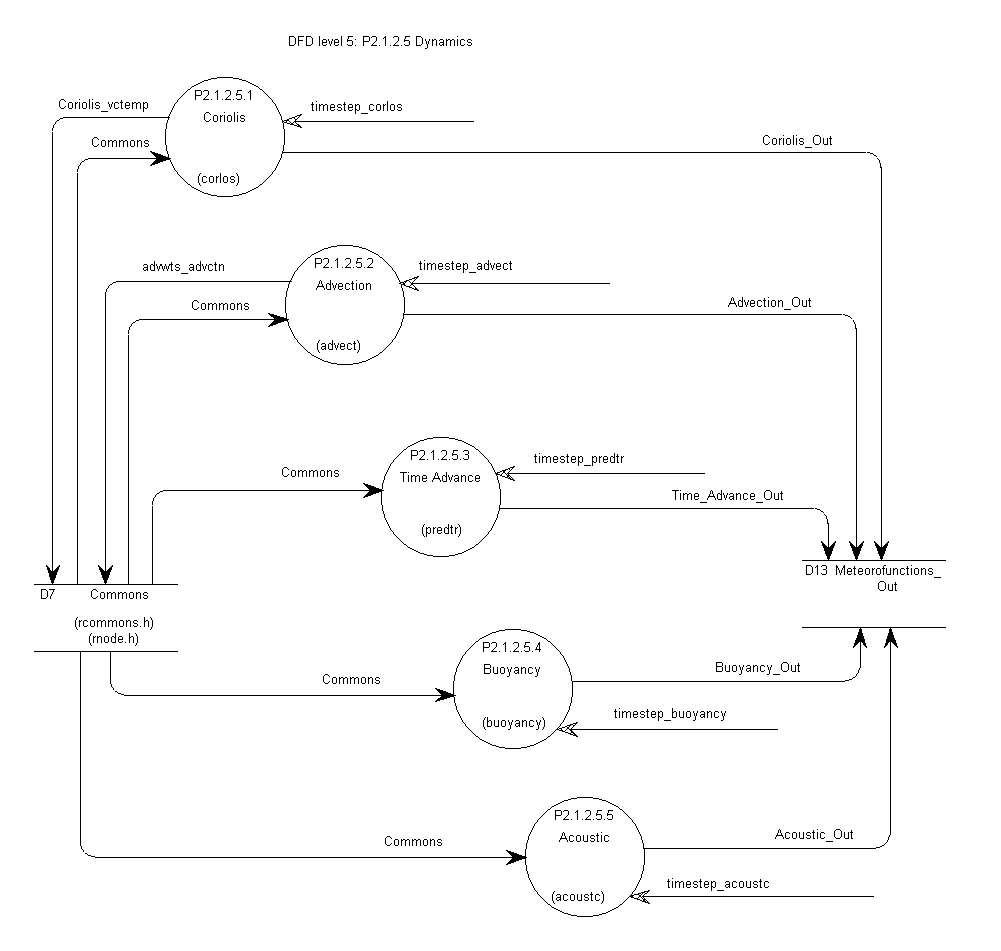

2.6. Dynamics Functions

Description Report

Name Description

Acoustic

It represents the acoustic function, implemented by the module

acoustc and all other modules called by it.

see reference /5/ - Volume III

Advection

It represents the advection function, implemented by the module

advect and all other modules called by it.

see reference /5/ - Volume III

Buoyancy

It represents the buoyancy function, implemented by the module

buoyancy and all other modules called by it.

see reference /5/ - Volume III

Coriolis

It represents the coriolis function, implemented by the module

corlos and all other modules called by it.

see reference /5/ - Volume III

Time Advance It represents the time advance function, implemented by the module predtr and all other modules called by it.
see reference /5/ - Volume III

3. DATA STRUCTURES

Data Structure Report

Name Structure

Boundary_vctemp

nudge_vctemp

varhyd_vctemp

Commons

Prognostic_Commons

Isan_Commons

Commons_Init rcommonsH
+
ascomsH
+
micphysH
+
rconfigH
+
rconstantsH
+
rmicparH
+
rnestH
+
rnodeH
+
rparaH
+
rvtablesH
+
sub_namesH
+
varnamesH
+
vcomm2H
+
mod_sub_namesH
+
radcom
+
cpars
+
cptend
+
cpenv
+
cpcon
+
conre1
+
nread
+
snding
+
sndingc

Coriolis_vctemp corlsu_vctemp
+
corlsv_vctemp
Cumulus_Cp conpar_cpars
+
conpar_cpenv
+
cu_environ_cpars
+
cu_environ_cpenv
+
cu_environ_cpcon
+
kuocp_cptend
+
kuocp_cpars
+
kuocp_cpenv
+
kuocp_cpcon
+
cp2mod_cptend
+
cp2mod_cpenv
+
cp2mod_vctemp

Dynamics_Out Coriolis_Out
+
Advection_Out
+
Time_Advance_Out
+
Buoyancy_Out
+
Acoustic_Out

Dynamics_rcommonsH Coriolis_vctemp
+
advwts_advctn

Isan_Commons isan_driver_Commons
+
isan_file_inv_Commons
+
prstage_Commons
+
get_press_Commons
+
pressio_Commons
+
isnstage_Commons
+
input_rawi_Commons
+
sndproc_Commons
+
sfcproc_Commons
+
vterp_i_Commons
+
vterp_s_Commons
+
first_rams_Commons
+
isenio_Commons
+
sigzio_Commons
+
isnzig_Commons
MODEL_Config rams_in
+
vtable
+
patch_table
+
empostgeo
+
kbarf
+
ct20

Meteorofunctions_Commons sfcrad_vctemp
+
leaftw_vctemp
+
Dynamics_rcommonsH
+
Boundary_vctemp
+
rayf_vctemp
+
Turbulence_rcommonsH
+
Radiation_radcom
+
Cumulus_Cp

Meteorofunctions_Out Thermodynamics_Out
+
Radiation_Out
+
Surface_Out
+
Coriolis_Out
+
Advection_Out
+
Time_Advance_Out
+
Buoyancy_Out
+
Acoustic_Out
+
Boundary_Out
+
Cumulus_Out
+
Friction_Out
+
Turbulence_Out
+
Microphysics_Out

Meteorological_Data pressure_level_data
+
surface_data
+
sounding_data

Prognostic_Commons Commons_Init
+
Meteorofunctions_Commons

Prognostic_Data l1a_a

Radiation_radcom radcomp_radcom
+
zen_radcom

Turbulence_rcommonsH bruvais_stuff
+
bruvais_vctemp
+
mxdefm_all
+
mxdefm_vctemp
+
tkemy_vctemp
+
diffvel1_vctemp
+
diffsclr1_vctemp
+
diffvel2_vctemp
advwts_advctn advwtx<real4<array
+
advwty<real4<array
+
advwtz<real4<array

ascomsH cntrl
+
cntrlc
+
ctcon
+
isan_proc
+
isan_proc_8
+
isan_proc_n
+
lambert
+
nprdat
+
oparms
+
pcmisc
+
pcst1
+
pcst3
+
pcst3a
+
pcstc
+
pcstsz
+
plscr
+
pltparms
+
sta
+
stach
+
trans

bruvais_stuff pi<real4<array
+
prt<real4<array
+
rc<real4<array
+
temp<real4<array
bruvais_vctemp vctr1<real4<array
+
vctr11<real4<array
+
vctr12<real4<array
+
vctr2<real4<array
+
vctr20<real4<array
+
vctr21<real4<array
+
vctr22<real4<array
+
vctr23<real4<array
+
vctr3<real4<array
+
vctr32<real4<array
+
vctr4<real4<array
conpar_cpars contim<real4
+
icpltfl<int4
+
icprtfl<int4
+
wconmin<real4
conpar_cpenv dncon<real4<array
+
picon<real4<array
+
prcon<real4<array
+
rvcon<real4<array
+
thtcon<real4<array
+
tmpcon<real4<array
+
ucon<real4<array
+
vcon<real4<array
+
wcon<real4<array
+
zcon<real4<array
+
zzcon<real4<array
corlsu_vctemp vctr2<real4<array
corlsv_vctemp vctr2<real4<array
cp2mod_cpenv qvct1<real4<array
+
qvct2<real4<array
+
qvct3<real4<array
+
qvct4<real4<array
cp2mod_cptend frcon<real4<array
+
ftcon<real4<array
cp2mod_vctemp vctr5<real4<array
+
vctr6<real4<array
cross ncross3
+
icrtyp3
+
icra3
+
icrb3
+
icrl3
+
ncrfld3
+
icrfld3
+
thcon3
+
acon3
cu_environ_cpars cdzmin<real4
+
dzhigh<real4
+
dzlow<real4
+
igo<int4
+
kcon<int4
+
ketl<int4
+
klcl<int4
+
kmt<int4
+
zmid<real4
cu_environ_cpcon theu<real4<array
cu_environ_cpenv pe<real4<array
+
pke<real4<array
+
rhoe<real4<array
+
rve<real<4<array
+
te<real4<array
+
thve<real4<array
+
zc<real4<array
+
ze<real4<array
diffsclr1_vctemp vctr1<real4<array
diffvel1_vctemp vctr1<real4<array
+
vctr2<real4<array
diffvel2_vctemp vctr1<real4<array
+
vctr2<real4<array

first_rams_Commons first_rams_all
+
first_rams_oparms
get_press_Commons get_press_lambert
+
get_press_cntrl
+
get_press_trans
initlz_isan_driver a<real4<dummy<array
+
b<real4<dummy<array
+
name_name<char<dummy
initlz_thermo a<real4<dummy<array
+
nzp<int4<in<common<dompts
offset:32
+
nxp<int4<in<common<dompts
offset:0
+
nyp<int4<in<common<dompts
offset:16
+
cte=1
+
nxp<int4<in<common<dompts
offset:0
+
cte=1
+
nyp<int4<in<common<dompts
offset:16
+
'THRM_ONLY'
input_rawi_Commons input_rawi_snding
+
input_rawi_trans
isan_control mstage
+
isan_inc
+
guess1st
+
i1st_flg
+
iupa_flg
+
isfc_flg
+
iapr
+
iarawi
+
iasrfce
+
ifnprs
+
ioflgp
+
ifnisn
+
ioflgi
+
ifnsig
+
ioflgs
+
ifnvar
+
ioflgv
isan_driver_Commons isan_driver_lambert
+
isan_driver_cntrl
+
isan_driver_all
+
isan_driver_oparms
+
isan_driver_nprdat
+
isan_driver_ioparm
+
isan_driver_trans
+
isan_driver_ioinfo
+
isan_driver_conre1
isan_file_inv_Commons isan_file_inv_all
+
isan_file_inv_isan_proc
+
isan_file_inv_isan_proc_n
isan_graph ipltprs
+
ipltisn
+
ipltsig
+
ipltsta
+
ilft1i
+
irgt1i
+
ibot1j
+
itop1j
+
nplev
+
iplev
+
nfldu1
+
ifldu1
+
conu1
+
ivelu1
+
ilft3i
+
irgt3i
+
ibot3j
+
itop3j
+
iup3beg
+
iup3end
+
iup3inc
+
nfldu3
+
ifldu3
+
conu3
+
ivelu3
+
nflds3
+
iflds3
+
cons3
+
ivels3
+
iszbeg
+
iszend
+
iszinc
+
nfldsz
+
ifldsz
+
consz
+
ivelsz
+
npltraw
+
nstis3
+
istis3
+
cross
isan_isentropic nisn
+
levth
+
nigrids
+
topsigz
+
hybbot
+
sfcinf
+
sigzwt
+
nfeedvar
+
maxsta
+
maxsfc
+
nonlys
+
idonlys
+
notsta
+
notid
+
stasep
+
istaplt
+
istarep
+
iupper
+
igridfl
+
gridwt
+
gobsep
+
gobrad
+
wvlnth
+
swvlnth
+
respon
isenio_Commons isenio_lambert
+
isenio_oparms
isnstage_Commons isnstage_cntrlc
+
isnstage_indmx3
+
isnstage_sta
isnzig_Commons isnzig_vctemp
kuocp_cpars envshr<real4
+
igo<int4
+
kct<int4
+
ketl<int4
+
klfc<int4
+
preff<real4
+
supply<real4
kuocp_cpcon thcon<real4<array
+
thd<real4<array
+
theu<real4<array
+
thu<real4<array
+
wtd<real4<array

kuocp_cpenv qvct1<real4
kuocp_cptend cprecip<real4
+
frcon<real4
+
ftcon<real4
+
vheat<real4
+
vmdry<real4
+
vmois<real4
leaftw_vctemp vctr1<real4<array
+
vctr14<real4<array
+
vctr16<real<array
+
vctr18<real<array
+
vctr2<real<array
+
vctr3<real<array
+
vctr4<real<array
+
vctr5<real<array
+
vctr6<real<array
+
vctr7<real<array

micphysH micphys
microphysics level
+
inucprg
+
icloud
+
irain
+
ipris
+
isnow
+
iaggr
+
igraup
+
ihail
+
cparm
+
rparm
+
pparm
+
sparm
+
aparm
+
gparm
+
hparm
+
gnu
model_file_info initial
+
varfpfx
+
nudlat
+
tnudlat
+
tnudcent
+
tnudtop
+
znudtop
+
timstr
+
hfilin
+
iotput
+
hfilout
+
afilout
+
frqhis
+
frqanl
+
kwrite
+
frqprt
+
initfld
+
sfcfiles
+
sstfpfx
+
itoptflg
+
isstflg
+
ivegtflg
+
isoilflg
+
nofilflg
+
iupdsst
+
itoptfn
+
isstfn
+
ivegtfn
+
isoilfn
+
silavwt
+
toptwvl
+
mkcoltab
+
coltabfn
model_grids runtype
+
timeunit
+
timmax
+
imonth1
+
idate1
+
iyear1
+
itime1
+
ngrids
+
nnxp
+
nnyp
+
nnzp
+
nzg
+
nzs
+
nxtnest
+
ihtran
+
deltax
+
deltay
+
deltaz
+
dzrat
+
dzmax
+
zz
+
dtlong
+
nratio
+
nstratx
+
nstraty
+
nndtrat
+
nestz1
+
nstratz1
+
nestz2
+
nstratz2
+
polelat
+
polelon
+
centlat
+
centlon
+
ninest
+
njnest
+
nknest
+
nnsttop
+
nnstbot
+
gridu
+
gridv
model_options naddsc
+
icorflg
+
ibnd
+
jbnd
+
cphas
+
lsflg
+
nfpt
+
distim
+
iswrtyp
+
ilwrtyp
+
radfrq
+
lonrad
+
nnqparm
+
confrq
+
wcldbs
+
npatch
+
nvegpat
+
isfcl
+
nvgcon
+
tvgoff
+
pctlcon
+
nslcon
+
zrough
+
albedo
+
seatmp
+
dthcon
+
drtcon
+
soildz
+
slz
+
slmstr
+
stgoff
+
idiffk
+
csx
+
csz
+
xkhkm
+
zkhkm
+
akmin
+
microphysics
model_print nplt
+
iplfld
+
ixsctn
+
isbval
model_sound ipsflg
+
itsflg
+
irtsflg
+
iusflg
+
hs
+
ps
+
ts
+
rts
+
us
+
vs
mxdefm_all rmax<real4
+
rmin<real4
mxdefm_vctemp vctr1<real4<array
+
vctr2<real4<array
nudge_vctemp vctr1<real4<array
+
vctr10<real4<array
+
vctr11<real4<array
+
vctr2<real4<array
+
vctr3<real4<array
+
vctr4<real4<array
+
vctr5<real4<array
prep_in ipress
+
irawi
+
isurface
+
natimes
+
iahour
+
iadate
+
iamonth
+
iayear
+
iapr
+
iarawi
+
iasrfce
+
ifnpress
+
ifnrawi
+
ifnsfc
+
nprx
+
npry
+
nprz
+
pdata
+
wplon
+
splat
+
levpr
+
obslat1
+
obslat2
+
obslon1
+
obslon2
+
istaplt
+
istarep
+
nplev
+
iplev

pressio_Commons pressio_lambert
+
pressio_cntrl
+
pressio_nprdat

prstage_Commons prstage_cntrl
+
prstage_nprdat

radcomp_radcom dn0r<real4<array
+
dzmr<real4<array
+
dztr<real4<array
+
fthrs<real4<array
+
pird<real4<array
+
prd<real4<array
+
rtr<real4<array
+
rvr<real4<array
+
temprd<real4<array
rams_in model_grids
+
model_file_info
+
model_options
+
model_sound
+
model_print
+
isan_control
+
isan_isentropic
+
isan_graph
rayf_vctemp vctr2<real4<array

rcommonsH allch
+
advctn
+
all
+
bndcon
+
cntrlr
+
dompts
+
filchr
+
files
+
grid
+
grpnts
+
hisgrd
+
index2
+
index3
+
index4s
+
indmx3
+
indtrc
+
ioinfo
+
ioparm
+
option
+
prtchr
+
sigmaz
+
soil2
+
soundg
+
spacing
+
sst2
+
sstchr
+
stuff
+
topccom
+
topocom
+
var2
+
varchr
+
vctemp
+
veg2
+
micphysH
+
rconfigH
rnestH nest

rnodeH buff_sizes
+
machinfo
+
pnode
+
pnoden
+
requests
rparaH parac
+
parac2
+
parallel
rvtablesH index2n
+
index3n
+
index4sn
+
mpvtable
+
nbndind
+
vtabch
+
vtabls
+
vtabopt
sfcproc_Commons sfcproc_stach
+
sfcproc_sta
sfcrad_vctemp vctr32<real4<array

sigzio_Commons sigzio_lambert
+
sigzio_oparms

sndproc_Commons sndproc_stach
+
sndproc_sta

timestep_Dynamics timestep_corlos
+
timestep_acoustc
+
timestep_buoyancy
+
timestep_advect
+
timestep_predtr
timestep_Meteorofunctions timestep_thermo
+
timestep_radiate
+
timestep_sfclyr
+
timestep_Dynamics
+
timestep_datassim
+
timestep_cuparm
+
timestep_rayft
+
timestep_diffuse
+
timestep_micro

timestep_acoustc a<real4<dummy<array
+
iter<int4
timestep_advect a<real4<dummy<array
+
'V'
+
mzp<int4<in<common<pnode
+
mxp<int4<in<common<pnode
+
myp<int4<in<common<pnode
+
ia<int4<in<common<pnode
+
iz<int4<in<common<pnode
+
ja<int4<in<common<pnode
+
jz<int4<in<common<pnode
+
jz1<int4<in<common<pnode
+
izu<int4<in<common<pnode
+
i0<int4<in<common<pnode
+
j0<int4<in<common<pnode
timestep_buoyancy a<real4<dummy<array
timestep_corlos a<real4<dummy<array
+
mzp<int4<in<common<pnode
+
mxp<int4<in<common<pnode
+
myp<int4<in<common<pnode
+
ia<int4<in<common<pnode
+
iz<int4<in<common<pnode
+
ja<int4<in<common<pnode
+
jz<int4<in<common<pnode
+
izu<int4<in<common<pnode
+
jzv<int4<in<common<pnode
timestep_cuparm a<real4<dummy<array
timestep_datassim a<real4<dummy<array
timestep_diffuse a<real4<dummy<array
+
[cte=1
|
cte=2
|
cte=3]
timestep_micro a<real4<dummy<array
+
mzp<int4<in<common<pnode
+
mxp<int4<in<common<pnode
+
myp<int4<in<common<pnode
+
ia<int4<in<common<pnode
+
iz<int4<in<common<pnode
+
ja<int4<in<common<pnode
+
jz<int4<in<common<pnode
timestep_predtr a<real4<dummy<array
timestep_radiate a<real4<dummy<array
+
mzp<int4<in<common<pnode
+
mxp<int4<in<common<pnode
+
myp<int4<in<common<pnode
+
ia<int4<in<common<pnode
+
iz<int4<in<common<pnode
+
ja<int4<in<common<pnode
+
jz<int4<in<common <pnode
timestep_rayft a<real4<dummy<array
timestep_sfclyr a<real4<dummy<array
+
mzp<int4<in<common<pnode
+
mxp<int4<in<common<pnode
+
myp<int4<in<common<pnode
+
ia<int4<in<common<pnode
+
iz<int4<in<common<pnode
+
ja<int4<in<common<pnode
+
jz<int4<in<common <pnode
+
ibcon<int4<in<common<pnode
timestep_thermo a<real4<dummy<array
+
mzp<int4<in<common<pnode
+
mxp<int4<in<common<pnode
+
myp<int4<in<common<pnode
+
['THRM_ONLY'
|
'NOMICRO']
tkemy_vctemp vctr1<real4<array
+
vctr30<real4<array
+
vctr31<real4array
+
vctr32<real4<array
+
vctr33<real4<array
+
vctr5<real4<array
+
vctr9<real4<array

varhyd_vctemp vctr30<real4<array
+
vctr31real4<array

vterp_i_Commons vterp_i_nprdat

vterp_s_Commons vterp_s_nprdat
zen_radcom cdec<real4
+
declin<real4
+
jday<int4
+
sdec<real4
+
tdec<real4
